The top photo is the old Baldi AT&T site. Note the pair of KS-15676 horn reflectors that appear to be pointed toward Stampede (bottom photo). This link does not appear on any route maps or expired license data. If anybody has been inside the Baldi site I am interested to hear if path names/labels appear on any of the remaining equipment/documentation. Of equal interest is if anyone can confirm KS-15676 reflector horns ever being installed at Stampede or any tower at Stampede being equipped to hold a pair of those heavy monsters. Unfortunately aerial photos of Stampede lack enough detail to be of any help.

The longlines site was on Hyak (mt?) according to a consultant I was with on Stampede Friday. edit- actually Mt Margaret.

Im looking for it now. There is cellular up there but I don't know of any other commercial two way.

American Tower owned it at one time.

_________________
"A well regulated breakfast, being necessary to the healthy start of the day, the right of the people to keep and eat food shall not be infringed." https://www.bitchute.com/video/bK3GgQaYtyZf

http://wikimapia.org/32464333/Long-Lines-Tower-Hyak


https://www.google.com/maps/place/47%C2 ... :0x0?hl=en


FCC Tower Registration Number- 1032530

214 ft tall.

_________________
"A well regulated breakfast, being necessary to the healthy start of the day, the right of the people to keep and eat food shall not be infringed." https://www.bitchute.com/video/bK3GgQaYtyZf

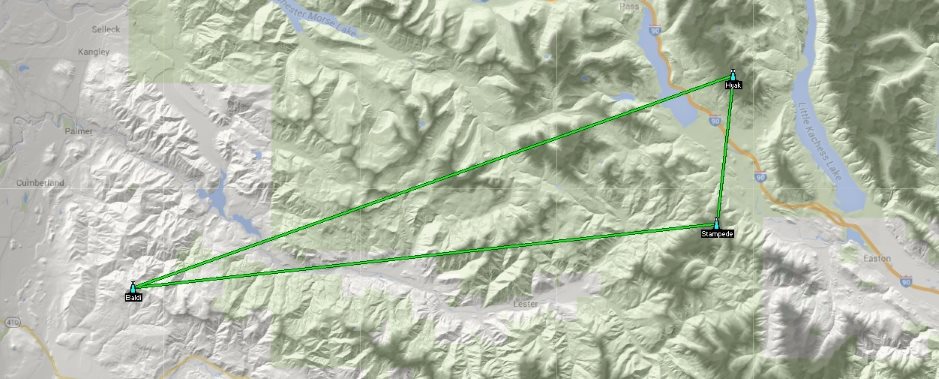

At one point I thought this might be possible however the Hyak tower was a repeater connecting Rattlesnake to Cle Elum and was not equipped with a third set of horns. Also, the horn alignment from Baldi points almost exactly at Stampede which is about 15 degrees south of Hyak.

Another point to back your thoughts is that the technician from the company that owns Baldi did state to me that the dish pointed at Stampede. Not the Hyak site. Looking at documentation I see my error.

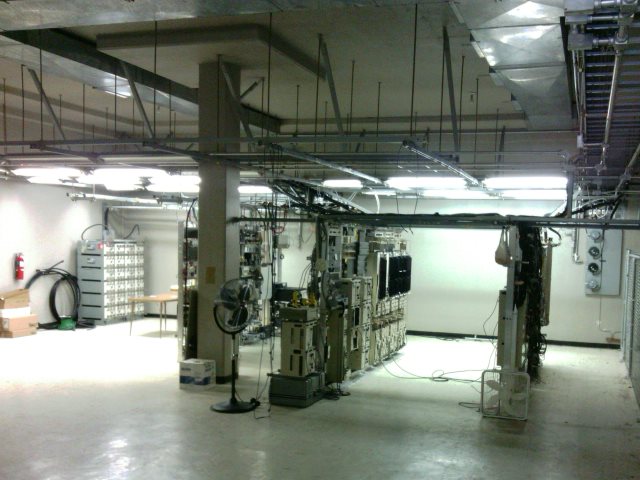

This is the best picture I have of the floor



We walked around the Stampede compound this last Friday and I know there is no trace of any longlines building there past or present. The Kitcom building is first on the right as you drive in. We have equipment on the first building to the left. WSP is at the end and to the left. Building at end straight to the back has US Property stickers.

_________________
"A well regulated breakfast, being necessary to the healthy start of the day, the right of the people to keep and eat food shall not be infringed." https://www.bitchute.com/video/bK3GgQaYtyZf

This is indeed strange. If there was never a corresponding site at Stampede I would figure the site would be along the line before/beyond Stampede. Only problem with that is there doesn't seem to be one. Another possibility is it was pointed at a passive reflector on Stampede that shot the signal somewhere else. Whatever the case this is interesting in that this is one of a few rare old microwave shots thats not on the route maps and doesn't seem to have a readily apparent path/purpose. Once this one is beat to death I'll have to post the Crystal Mountain mystery. And thanks for the photos, many ex-Long Lines sites are "as abandoned" and not so clean. The only redeeming value of leaving a mess is it often included equipment and documentation.

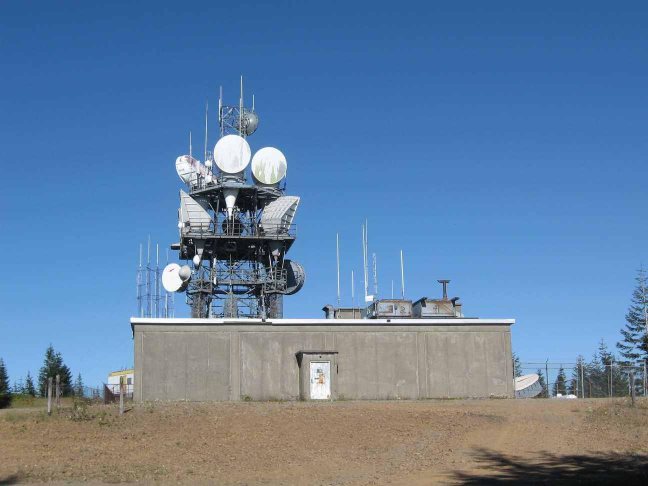

At Stampede that building in the bottom of the photo appears to have an antenna in back in that direction of Baldi that doesn't seem to make much sense as well..

In this picture you can almost make out the horns that had been removed. The structure built in the back is in place of one of the original horns. And to the left you can almost see the left over ring.






Im curious if some of the horns could have been re-aimed later for what ever reason. I know that the present owners did try to use a couple of the horns to transport their microwave. They found them leaking too badly though.

I believe there is present microwave (put in by the building owners) to Stampede that is still active.

_________________
"A well regulated breakfast, being necessary to the healthy start of the day, the right of the people to keep and eat food shall not be infringed." https://www.bitchute.com/video/bK3GgQaYtyZf

This would make sense. The two horns on the ground are from the Orting and Rattlesnake links. Missing from the photo are two that should be pointed at Ravens Roost. They must have been re-aimed at Stampede after AT&T sold the site.
